12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B
商品の詳細
| コネクタ | MPO/APC | ファイバ | OS1 |
|---|---|---|---|
| カバー | PVC、LSZH | 挿入損失 | 0.2dB |
| リターンロス | 55dB | 直径 | 2.0mm、3.0mm |
| 長さ | 13 5 7 10 15 20 ... ほら | コア | 9/125 |
| 繊維数 | 8繊維 12繊維 24繊維 | 色 | 黄色 |
製品の説明
12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B
Description:
KCO Fiber factory directly sell MPO Patch Cable, MTP Trunk Cable
MPO patch cables / MTP Trunk Cables are high-density fiber optic cables that used for fast data networks. It uses a Multi-fiber Push-On connector to link many fibers at once.
MPO patch cables / MTP trunk cables connect racks together. They use MPO / MTP connectors on both ends of cable.
High Fiber Count: One connector holds 8F, 12F, 16F, 24F, 32F, even 48F.
Space Saver: It reduces cable clutter in crowded server racks.
Fast Speeds: It supports high network speeds like 40G, 100G, and 400G.
12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B Detail information:
Connector side A: MPO female / MTP female
Connector side B: MPO female / MTP female
Fiber type: Single mode G657A1
Fibe count: 12F
Cable diameter: 3.0mm
Cable out-sheath material: LSZH
Cable color: yellow
Cable length: 1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...
Polarity: Type B (exwork, optional: type A, type C)
IL: Ultra Low Loss (0.35dB)
RL: 55dB
Application
- High density big data center such as bank data center, telecom data center, icloud data center, ...
- AI data center
- Starlink data center
- High speed telecommunication transmission
- Telecommunication networks
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations
- Wide Area Networks(WANs).
- FTTx (FTTH, FTTO, FTTB, FTTA, ...)
- High speed transport data center such as metro, high-speed railway, light railway...
Features
- Long Distance: They can send data over miles instead of feet.
- Laser Light: They use powerful laser light sources instead of LEDs.
- Yellow Jacket: They almost always have a bright yellow outer cable jacket.
- Angled Connectors: They use green APC connectors to stop light from bouncing back.
- Infinite Bandwidth: The glass fiber material has no theoretical limit on data speed.
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available

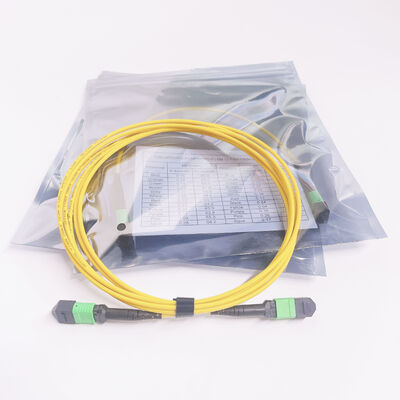

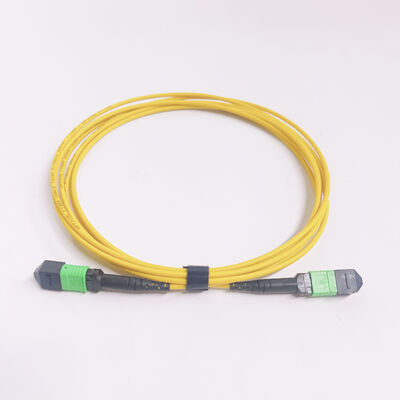

Product photos:

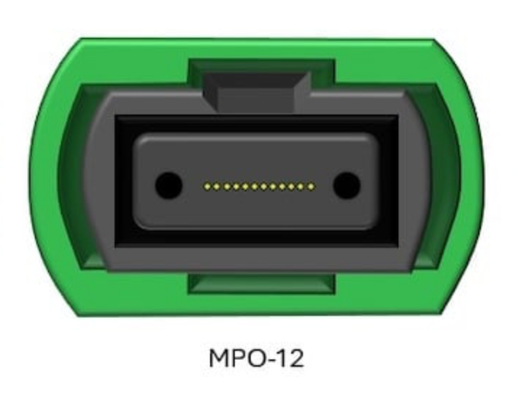

Single MPO MTP connector type
Multi MPO MTP connector type
About Single mode fiber SMF G657A1 type:
Single mode G657A1 fiber is a type of single-mode optical fiber designed to bend easily without losing its signal.
It is officially called a "bend-insensitive" fiber because it can handle tight turns around corners and inside small boxes.
Mode Field Diameter (MFD): 8.4 to 9.2 μm
Cladding Diameter: 125.0 ± 0.7 μm.
Wave length: 1310nm / 1550nm
Smaller radius bend:
- 10 mm Radius Bend: Wrapping the fiber one full turn around a 10 mm radius cylinder limits maximum signal loss to 0.75 dB at a light wavelength of 1550 nm. At 1625 nm, the maximum allowed loss is 1.5 dB.
- 15 mm Radius Bend: Wrapping the fiber 10 full turns around a roomier 15 mm radius limits maximum signal loss to 0.25 dB at 1550 nm and 1.0 dB at 1625 nm.
Light Wave Speeds: It transmits best at 1310 nm and 1550 nm light wavelengths.
High-speed transmision function: It easily carries modern data speeds of 100G, 400G, and 800G.
Long transmission distance: upto 120km
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | MPO APC female | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) |
≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) |
|
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
Polarity type B:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, pallet.
Standard marking.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
