Stranded Loose Tube Light Armored SM G652D 24cores GYTS Outdoor Cable
商品の詳細
| 材料 | PE、LDPEのHDPE | 名前 | 屋外光ファイバーケーブル |
|---|---|---|---|
| 長さ | ロールごとに2~3km | ケーブルの種類 | gyxtw |
| ファイバ | マルチモード OM2 50/125 | コア | 2コアから24コア |
| 色 | 黒 | 直径 | 7.0mm |
| 部品番号 | GYXTW-xA1 | ||
| ハイライト | Stranded Loose Tube Fiber Cable,GYTS Outdoor Fiber Optic Cable,24cores SM G652D Armored Cable |
||
製品の説明

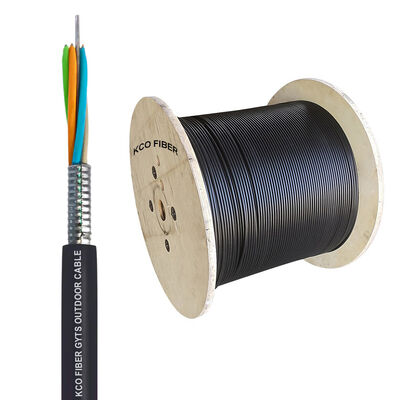

Stranded Loose Tube Light Armored SM G652D 24cores GYTS Outdoor Cable
1. What is GYTS outdoor cable?
+ GYTS outdoor cable is a stranded loose tube outdoor cable, with metal (or FRP) strength member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication.
+ GYTS outdoor cable is the outdoor fiber optic cable type that used for duct and aerial application.
+ GYTS outdoor cables consist of a high-quality fiber optic strand at the core, surrounded by protective loose tubes made from materials like high-density polyethylene (HDPE)
+ GYTS outdoor cable feature a light-armored layer, tightly wrapped with corrugated steel tape or wire, providing robust protection against environmental hazards.
+ GYTS ooutdoor cables can create reliable and high-performance communication infrastructure for your business or institution

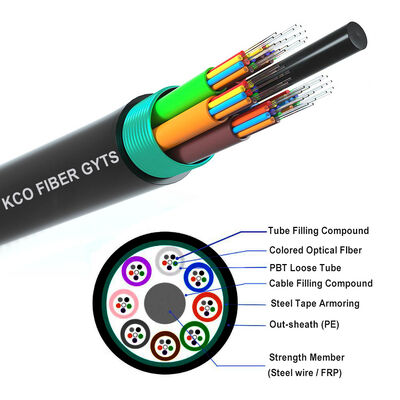

2. GYTS outdoor cable structure:
3. GYTS outdoor cable application:
+ Telecommunications and Data Centers: Seamless Connectivity Backbone+ Oil and Gas: Reliable Communication in Challenging Environments
+ Transportation and Traffic Management: Enhanced Safety and Efficiency
+ Government and Public Sector: Secure and Reliable Connectivity
+ Industrial Automation and Manufacturing: Seamless Data Transmission
4. Standard
- Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. GYTS outdoor cable performance
|
Item |
Parameters |
|
|
Loose tube |
Material |
PBT |
|
Color |
Full color spectrum |
|
|
Filler |
Material |
PE |
|
Color |
Black |
|
|
CSM |
Material |
Phosphating steel wire |
|
Armoured |
Material |
Plastic coated aluminum strip |
|
Outer jacket |
Material |
MDPE |
|
Color |
Black |
|
|
Min. bending radius |
Static |
10 times cable diameter |
|
Dynamic |
20 times cable diameter |
|
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Tensile performance |
Short term |
1500N |
|
Crush |
Short term |
1000N/100mm |
|
Torsion |
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Impact |
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
|
6. Fiber characteristic
| Fiber style | Unit | MM | |
|---|---|---|---|
| Condition | nm | 850/1300 | |
| Attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
7. Fiber and loose tube color
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
KCO Fiber OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
