FIST-GC02-A16-SC54 Fiber Optic Splice Closure Dome Type 288cores with 54 DX SC adapter
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Material | PP+Glass Fiber | Port | 1 (Oval)+16 (Round) |
|---|---|---|---|
| Max Cores | 288 Cores | Adapter | 54 pcs Duplex SC Adapter |
| Carton Size | 680*580*360 mm | Carton Package | 2 Units/CTN |
製品の説明
FIST-GC02 A16 SC54 Fiber Optic Splice Closure Dome Type 288cores with 54 DX SC adapter
Products Introduce:
FIST-GC02-A16-SC54 type of Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts heat-shrinkable seals only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 12mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection; IP safety rate is IP68; he sealing method adopts screw pressure; This model is suitable for different methods of branch connection, including branching of uncut cable. It could be used for aerial, pole-mounting, wall-mounting and underground application. The model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment
Application :
It can be installed in aerial locations, ducted applications, direct buried, manholes. Small volume but large capacity.
Features:
1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
4 . The splice trays are hinged for access to any splice tray, without disturbing other trays.
5. The inner parts and fixing parts are made of stainless steel
6. With a earthing device protect it from damage by lightning
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole) and in many applications(tap-off, expressed, branch, and repair)
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2.Atmospheric Pressure: 70~ 150Kpa
3.Axial Tension: >2000N/ 1min
4. Stretching Resistance: 2500N/ 10 square centimetre( 1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/ 1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss.
Structure Diagram:

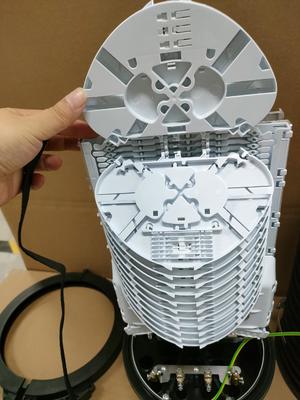

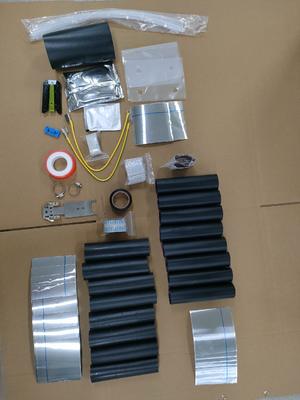

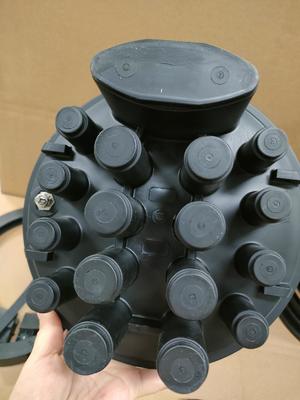

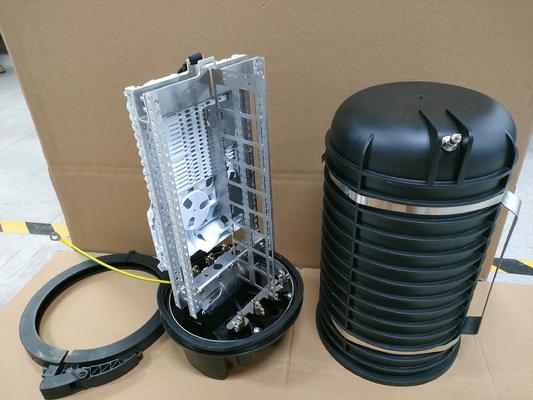

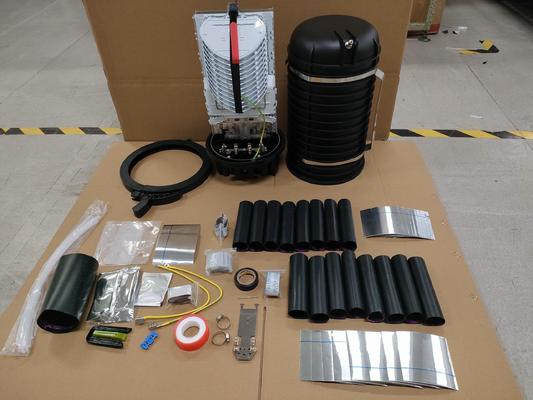

Producs photos:
Delivery Ways:
By Sea or by Car or by Air.
