D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | LC/UPC、LC/APC、LC/PC | 挿入損失 | 0.2dB |
|---|---|---|---|
| モード | 、MMの単一モード、SMのモノラル モード多重モード | リターンロスします。 | 55dB |
| コア数 | 2つの中心、二重、1中心、単信、多繊維 | 長さ | 3m、カスタマイズされる5m |
| ハイライト | optical fibre cable connectors,plastic optical fiber connectors |
||
製品の説明
D4 fiber optic connectors special optical fiber connector for SM MM patch jumpers making
Fiber Optic Connectors Descriptions:
- The D4 fiber optic connectors hold a single fiber in a 2.0 mm ceramic ferrule.
- The D4 connector’s body is similar in design to the FC connector, except for the smaller ferrule, and a longer coupling nut.
- Properties and applications of the D4 are likewise comparable to the FC connector.
- Fiber Optic Connectors is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.
Fiber Optic Connectors Applications:
- Telecommunication Network, wide area networks.
- Local Area Network(LAN).
- Testing Equipment.
- Optical Switch interface connections
- Gigabit Ethernet
- CATV and WAN
- Testing Instrument, active device connection
- Premise Installations
- Telecommunication Networks
- Fiber to the home (FTTH)
Fiber Optic Connectors Features:
- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.
- Low insertion loss
- High return loss
- Excellent repeatability
- Compact and anti-pull design
- High precision exact alignment
- UPC, PC or APC polished connectors

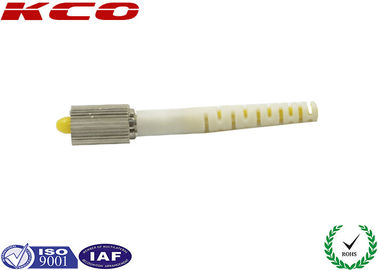

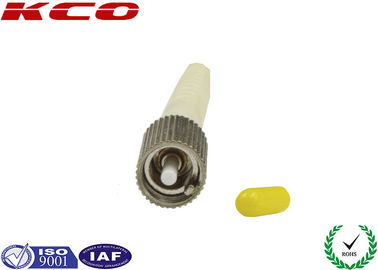

Fiber Optic Connectors Product Pictures:
Details about Fiber Optic Connectors:
| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic to meet standard; amiability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, etc |
Fiber Optic Connectors Specifications:
Item |
Single mode | Multimode | |||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | ||
| Insert Loss/connector (single Fiber) |
0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) | |||||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | |||
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) | |||||
| Pull Strength | ≥98N | ≥98N | |||||
Ordering Information:
1, Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
Our Fiber Optic Connectors packing ways:
OEM Service: Label customized is available
We can provide Fiber Optic Connectors for single mode, multimode, simplex, duplex. Also OEM Service is available, such as package, label, etc all can be customized. We can supply all type of fiber optic connector such as SC, FC, ST, LC, MTRJ, MU, DIN, etc in un-assembly, pre-assemly status. All our Fiber Optic Connector meet RoHS Compliant, and 100% test Insert loss before shipment.
